LM-150型反井钻机(ZFY1.2/30/150)
ZFY1.2/30/150(LM-150)型反井钻机
LM-150型反井钻机主要由钻机车、操作车、泵车、钻具等四部分组成,配套辅助设备为洗井泵一台,斜井专用装置一套。
ZFY1.2/30/150(LM-150)型反井钻机-技术参数表

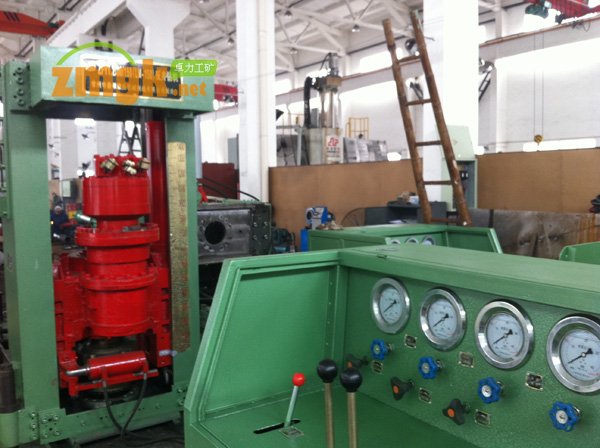

ZFY1.2/30/150型反井钻机 产品图
LM-150型反井钻机主要由钻机车、操作车、泵车、钻具等四部分组成,配套辅助设备为洗井泵一台,斜井专用装置一套。
ZFY1.2/30/150(LM-150)型反井钻机-技术参数表
|
钻机型号 Model of boring machine | ZFY1.2/30/150 | |
基本参数 Basic Parameter | (LM-150) | ||
导孔直径 | Pilot Hole Diameter (mm) | 244 | |
扩孔直径 | Reaming Hole Diameter (m) | 1.2 | |
钻孔深度 | Hole Depth (m) | 150 | |
出轴转速 | Outlet Shaft Speed (rpm) | 5-33 | |
额定扭矩 | Rating Torque(KN·m) | 15 | |
最大扭矩 | Maximum Torque(KN·m) | 30 | |
最大推力 | Maximum Thrust Allowed for Drilling Bit (kN) | 350 | |
最大扩孔拉力 | Maximum Tension Force for Reaming (kN) | 850 | |
钻孔角度 | Hole Dip Angle (Degrees) | 60-90 | |
主机重量 | Weight of main machine (Ton) | 6 | |
主机搬运尺寸(长×宽×高) | Transportation Package Size(mm) (length*width*height) | 2290×1110×1430 | |
主机工作尺寸(长×宽×高) | Working dimensions of main Machine (length×width×height)(mm) | 2977×1422×3277 | |
钻杆直径×有效长度 | Drilling rod diameter×Effective Length (mm) | φ176*1000 | |
钻孔偏斜率 | Slope of hole (%) | ≤1 | |
电机功率 | Motor Power (kW) | 66 | |
驱动方式 | Driven Method | Full-hydraulic | |
适应岩性 | Adaptive lithology | One-way compressive strength of rocks ≤140.0MPa |
ZFY1.2/30/150型反井钻机 产品图
